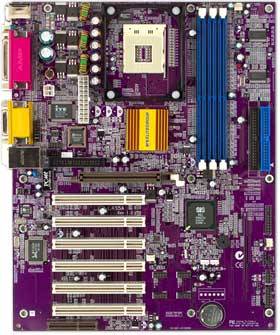

L4S5A - ECS Elitegroup
PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET SiS® 645 & SiS® 961 Chipset SiS® 645 Host/Memory controller with DDR333 and AGP4X North Bridge Single Chipset SiS® 961 MuTIOL Media I/O LPC I/O - IT8705F System Hardware Monitor: Built-in IT8705F LAN: RealTek 8100/B (optional) AC97 Audio Codec: Compliant with AC97 2.1 specification SYSTEM BIOS Three 184-pin DDR DIMM sockets to support Three 2.5V DDR SDRAMs (DDR266/DDR200) or Two 2.5V DDR SDRAMs (DDR333) Maximum: 3GB (2GB only for DDR333) MEMORY Award 2MB Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0 specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB Ports and an optional LAN connector One - EPP/ECP mode parallel port One - 16550 high-speed serial I/O ports Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX12V Power Supply Connectors Ports, Headers and Others: IrDA header (STR) Front Panel MIC/Line-out header COM2 header Four Extra USB header (LUSB1/USB3 or LUSB2/USB2) Smart Card Reader Header HDD LED, Reset Switch, Power Switch headers CPU, BAK and CHS Fan headers LAN Card Wake Up / Modem Ring Wake-Up Headers RTC & BATTERY SiS® 961 built-in 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 6 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR ATX (305mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
