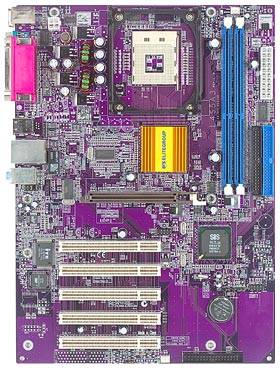

L4S5A3 - ECS Elitegroup
Special Features Supports HT Technology Magic Setting Hardware Monitoring USB 2.0 Processor One Socket 478 supports the Intel® Pentium 4 processor (478pins) Chipset SiS® 645DX (B0) & SiS® 962/962L Chipset SiS® 645DX Host/Memory controller with DDR333 and AGP4X North Bridge Single Chipset Integrated USB 2.0 host controller in SiS® 962/962L Integrated IEEE 1394A host controller in SiS® 962 (optional) SiS® 962/962L MuTIOL Media I/O LPC I/O:ITE8705F System Hardware Monitor: Integrated in ITE IT8705F LAN:10/100Mbps Faster Ethernet (optional) Audio : AC97 Codec, CMI9739A AC97 Audio Codec, compliant with AC97 2.2 specification Main Memory Two 184-pin DDR DIMM sockets for 2.5V, DDR SDRAM (DDR333) Max. 2GB BIOS Award 2Mb Flash EEPROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification I/O Interface Support Plug and Play funtion PS/2 keyboard and PS/2 mouse connectors Four USB Ports and an optional LAN Connector One EPP/ECP mode parallel port One 16550 high-speed serial I/O port Audio ports (Line-in, Line-out, Mic-in and CD-in) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100/133) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector CD-in header (CDIN1) Front Panel MIC/Line-Out header 2 Extra USB2.0 Ports One IEEE 1394A header (optional) HDD LED, Reset Switch, Power Switch headers PWRFAN, CPUFAN, and CASFAN header RTC & Battery SiS® 961 built-in 256 bytes of CMOS SRAM With CMOS hardware clear jumper Expansion Slots 6 PCI slots, 1 AGP slot Form Factor ATX (305mm*220mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
