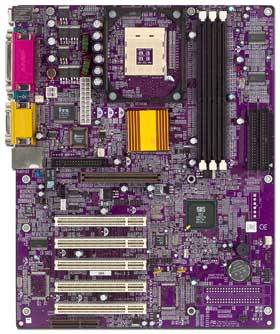

L4S5A/DX - ECS Elitegroup
Socket 478 board that supports Intel® Pentium® 4 processor up to 533MHz FSB Integrated with the most advanced technologies: Suspend to RAM Magic Setting PROMISE IDE RAID controller (optional) PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET SiS® 645DX & SiS® 961 chipset: SiS® 961 MuTIOL media I/O LPC I/O - ITE IT8705F LAN: 10/100Mbps faster Ethernet (optional) PROMISE PDC20265R IDE RAID controller (optional) AC97 audio codec: Compliant with AC97 2.2 specification SYSTEM BIOS Award 2Mb Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, multi boot, DMI Support for ACPI revision 1.0 specification MEMORY 3 DDR DIMM sockets support 3 2.5V DDR SDRAMs (DDR266/DDR200) or 2 2.5V DDR SDRAMs (DDR333) Maximum: 3GB (2GB only for DDR333) I/O INTERFACE PS/2 keyboard and PS/2 mouse connectors Dual USB ports and an optional LAN connector 1 EPP/ECP mode parallel port 1 16550 high-speed serial I/O port Audio ports (line-in, line-out, mic.-in, CD-in and game port) Supports 8 ATA/ATAPI devices (4 optional) Standard: dual PCI IDE interfaces - support 4 IDE devices (PIO mode 4, DMA mode 2, Ultra DMA 66/100/133) Option: 2 independent ATA channels for another 4 IDE devices (PIO mode 4, DMA mode 2, Ultra 66/100) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX12V power supply connectors Ports, headers and others: IrDA header (SIR) Front panel mic./line-out header COM2 header 4 extra USB ports (LUSB1/LUSB2 or USB2/USB3) HDD LED, reset switch, power switch headers CPU, BAK and CHS fan headers LAN card wake up / modem ring wake up headers RTC & BATTERY SiS® 961 built-in 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 5 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR & LAYERS ATX (305mm x 244mm), 4 layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
