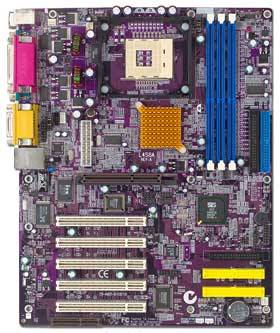

L4S8A - ECS Elitegroup
Socket 478 board that supports Intel® Pentium® 4 processor up to 533MHz FSB Integrated with the most advanced technologies: SiS MuTIOL media I/O Magic Setting USB 2.0 (SiS® 963) IEEE 1394 (optional) Silcon Image serial ATA RAID controller (optional) PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET SiS® 648 & SiS® 963 chipset SiS® 963 MuTIOL media I/O Integrated IEEE 1394A host controller in SiS® 963 LPC I/O: ITE IT8705F LAN: RealTek 8100B (optional) Silcon Image serial ATA RAID controller (optional) AC97 audio codec: Compliant with AC97 2.2 specification SYSTEM BIOS Award 2Mb flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, multi boot, DMI Support for ACPI V1.0 specification MEMORY 3 DDR DIMM sockets support 3 2.5V DDR SDRAMs (DDR266/DDR200) or 2 2.5V DDR SDRAMs (DDR333) Maximum: 3GB (2GB only for DDR333) I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors 4 USB ports and an optional LAN connector 1 EPP/ECP mode parallel port 2 16550 high-speed serial I/O ports Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Supports 8 ATA/ATAPI devices (4 optional) Standard: Dual PCI IDE interfaces - support 4 IDE devices (PIO mode 4, DMA mode 2, Ultra DMA 66/100, 133 for SiS963) Option: 2 serial ATA channels for another devices Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connector Ports, headers and others: IR header (SIR) Front panel Mic./Line-out header 2 IEEE 1394A headers (optional) 2 extra USB ports (USB2) HDD LED, Reset switch, Power switch headers CPU, power switch and case fan headers RTC & BATTERY SiS® 963 built-in 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 5 PCI slots, 1 8X AGP slot, 1 CNR slot FORM FACTOR & LAYERS ATX (305mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
