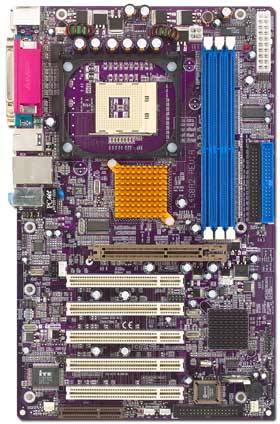

L4S8A2/HT - ECS Elitegroup
Special Features Supports HT Technology AGP 8X USB 2.0 Processor One Socket 478 supports the Intel Pentium 4 processor (478pins) Chipset SiS648 B0 & SiS963L Chipset ,SiS963L MuTIOL Media I/O, integrated USB 2.0 host controller in SiS963L AGP v3.0 compliant with 8x transfer mode. LPC I/O:ITE8705F LAN:10/100Mbps Faster Ethernet (optional) AC97 Audio Codec, compliant with AC97 2.2 specification BIOS Award 2Mb Flash EEPROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification Main Memory Three 184-pin DDR DIMM sockets to support three 2.5V DDR SDRAMs (DDR266/200) or two 2.5V DDR SDRAMs (DDR333),one 2.5V DDR SDRAMs (DDR400, by overclocking) Maximum: 3GB (2GB for DDR333, 1GB only for DDR400 by overclocking) I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors One EPP/ECP mode parallel port One 16550 high-speed serial I/O port Four USB Ports and an optional LAN Connector Audio Ports (Line-in, Line-out and Mic-in) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100/133) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connectors (20-pin and 4-pin) IR header (SIR) Front Panel MIC/Line-Out header Extra USB Header (USB3) for two USB devices USB Card Reader Header (optional) HDD LED, ACPIMSG LED, Reset Switch, Power Switch headers CPU and chasis Fan headers LAN Card Wake Up/Modem Ring Wake-Up headers RTC & BATTERY SiS963L built-in 256 byte of CMOS SRAM With CMOS hardware clear jumper Expansion Slots 5 PCI slots, 1 AGP slot (8X) Form Factor & Layers ATX (305mm*190mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
