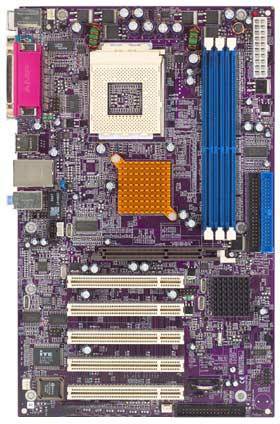

L7S7A2 - ECS Elitegroup
Special Features AGP 8X USB 2.0 6 Channel Audio Supports DDR400 by overclocking Supports UltraDMA 133/100/66 Processor Socket 462 for AMD K7 Athlon XP/ Athlon/ Duron processor FSB 333*/266/200 MHz ( * means overclocking ) Chipset SiS® 746 & 963L North Bridge: SiS® 746 South Bridge: SiS® 963L Main Memory 3 x 184-pin DDR DIMM socket support up to 3 GB ( DDR400 up to 2 GB ) Support DDR400*/333/266 MHz 2.5V DDR SDRAM (* means overclocking) Expansion Slot 1 x AGP 8X/4X slot 5 x PCI slots 1 x CNR slot Storage Support by SiS® 963L: 4 x Ultra DMA133/100/66 devices Audio C-Media CMI9739A 6-channel audio CODEC Compliant with AC'97 2.2 specification LAN Realtek RTL8201BL 10/100 Mbps Fast Ethernet PHY Rear Panel I/O 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 1 x RJ45 LAN connector 1 x Parallel port (LPT1) 2 x Serial ports (COM1 & COM2) 1 x Audio port (Line-in, Line-out, Mic-in) Internal I/O Connectors and Headers 1 x 20-pin ATX Power Supply Connector 1 x FDD connector supports two 360K~2.88MB FDDs 2 x IDE connectors 1 x IrDA for SIR header 1 x USB 2.0 header support additional 2 USB ports 1 x SPDIF out header 1 x Front panel switch/LED header 1 x Front panel audio header CD in1/CD in2 header CPUFAN/BAKFAN/CHSFAN connectors WOL/WOM connectors Sytem BIOS Award BIOS with 2Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Supports ACPI revision 1.0 specification Form Factor ATX Form Factor, 305*190mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
