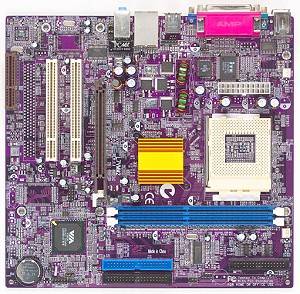

L7VMM2 V1.1 - ECS Elitegroup
Special Features Internal/External AGP Hardware monitoring USB 2.0 Processor Socket 462 for AMD K7 Athlon XP/ Athlon/ Duron processor FSB 266/200 MHz Chipset VIA® KM266(NB) & VT8235 (SB) North Bridge: VIA KM266 South Bridge: VIA VT8235 Main Memory 2 x 184-pin DDR DIMM socket support up to 2 GB Support DDR266/200 2.5V DDR SDRAM Graphics Integrated S3 ProSavage8 2D/3D Graphics Audio VIA VT1612A 2-channel audio CODEC Compliant with AC'97 2.2 specification LAN VIA VT6103 10/100 Mbps Fast Ethernet PHY Storage Support by VIA VT8235: 4 x Ultra DMA133/100/66 devices Expansion Slots 2 PCI slots 1 AGP (4X) 1 CNR slot Back Panel I/O Ports 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 1 x RJ45 LAN connector 1 x VGA port 1 x Parallel port (LPT1) 1 x Serial port (COM1) 1 x Audio ports (Line-in, Line-out, Mic-in) Internal I/O Connectors 1 x 20-pin ATX Power Supply Connector 1 x Floppy connector supports 360K~2.88M Bytes, 3 Mode FDDs or LS120 2 x IDE connectors 1 x Speaker header 1 x USB 2.0 header support additional 2 USB ports 1 x USB card reader header 1 x Front panel switch/LED header 1 x Front panel audio header CD in header CPUFAN/CASFAN connectors BIOS Award BIOS with 2Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Muli Boot, DMI Full Support for ACPI revision 1.0 specification Form Factor Micro-ATX Size, 244mm*230mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
