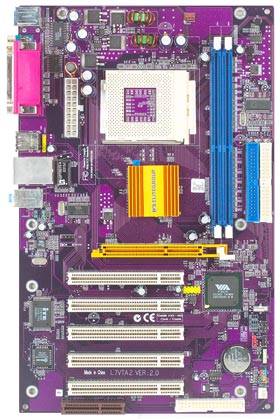

L7VTA2 - ECS Elitegroup
Special Features: 8X AGP USB 2.0 Suspend to RAM IEEE 1394 Processors 462 pin Socket A supports AMD K7 processors, full series of Athlon XP/ Athlon/ Duron processors. Chipset VIA® KT400 (NB) & VT8235 (SB) KT400 V-Link Host system controller and VT8235 V-Link Client controller Peak Bandwidth 533 MB/Sec 8-bit V-link Host/Client Controller AGP v3.0 compliant with 8x transfer mode. Integrated USB 2.0 host controller in VIA® VT8235 LPC I/O:ITE8705F LAN:10/100Mbps Faster Ethernet (optional) VIA® VT6307 IEEE1394 Host Controller (optional) AC97 Audio Codec, compliant with AC97 2.2 specification System Bios Award 2Mb Flash EEPROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification Main Memory Three 184-pin DDR DIMM sockets for 2.5V DDR SDRAM to support: three 2.5V DDR SDRAMs (DDR333) or two 2.5V DDR SDRAMs (DDR400, conditional) Max. 3GB (2GB only for DDR400, conditional) I/O Interface Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors One EPP/ECP mode parallel port 2 16550 high-speed serial I/O ports Four USB2.0 Ports and an optinoal LAN connector One IEEE1394 port (optional) Audio Ports (Line-in, Line-out and Mic-in) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100/133) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector IR header (SIR) CD-in header (CDIN1) AUX Line-in header USB Card Reader Header SPDIF In/Out header for digital audio interface Front Panel MIC/Line-Out header Two Extra USB 2.0 Ports (USB3) One IEEE 1394 header (optional) HDD LED, Dual Color LED, Reset Switch, Power Switch headers CPU and chassis Fan headers RTC & Battery VT8235 included 256 byte of CMOS With CMOS hardware clear jumper Expansion Slots 5 PCI slots, 1 AGP slot, 1 CNR slot Form Factor ATX (305mm*190mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
