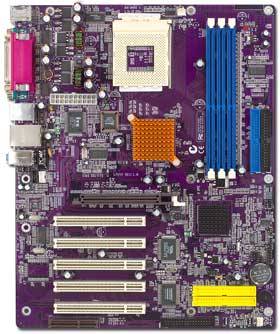

L7VTA V1.1 - ECS Elitegroup
Special Features: 8X AGP USB 2.0 PROMISE IDE RAID controller (optional) IEEE 1394 (optional) Processors Socket 462 for AMD K7 Athlon XP/ Sempron/ Athlon/ Duron processor FSB 333/266/200 MHz Chipset VIA® KT400 & VT8235 North Bridge: VIA® KT400 South Bridge: VIA® VT8235 System Bios Award 2Mb Flash EEPROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification Main Memory Three 184-pin DDR DIMM sockets for 2.5V DDR SDRAM to support: three 2.5V DDR333 (KT400/KT400A) or DDR400 (KT400A) SDRAMs or two 2.5V DDR400 SDRAMs (KT400, conditional) Maximum: 3GB for DDR333(KT400/KT400A) or DDR400 (KT400A), 2GB for DDR400 (KT400, conditional) I/O Interface Support Plug and Play funtion PS/2 keyboard and PS/2 mouse connectors One EPP/ECP mode parallel port One 16550 high-speed serial I/O port Dual USB Ports and an optional IEEE1394 connector Dual USB Ports and an optional LAN connector Audio Ports (Line-in, Line-out and Mic-in) Supports eight ATA/ATAPI devices (four optional) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100/133) Option: Two independent ATA channels for another four IDE devices (PIO Mode 4, DMA Mode 2, Ultra DMA66/100) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector CD in, AUX in headers Extra USB Header (USB3) for two USB devices One IEEE 1394 header (optional) HDD LED, ACPIMSG LED, Reset Switch, Power Switch headers CPU and chasis Fan headers USB Card Reader Header RTC & Battery VIA® VT8235 built-in 256 bytes of CMOS SRAM With CMOS hardware clear jumper Expansion Slots 5 PCI slots, 1 AGP slot, 1 CNR slot(optional) Form Factor ATX (305mm*220mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
