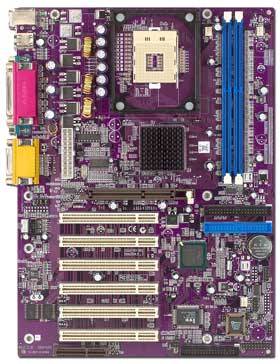

MB845AD - ECS Elitegroup
Intel® Pentium® 4 board that supports host bus up to 533MHz (enhanced) Integrated with the most advanced technologies: Magic Setting Hardware Monitoring PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET Intel® 82845 & 82801BA -- Memory Controller Hub (MCH), I/O Controller Hub 2 (ICH2) & Firmware Hub (FWH) with following features: Supports 4X AGP (AGP 2.0 Specification), 1.5V only Supports Ultra DMA100 (ATA100) LPC I/O: ITE 8712F HPT372 IDE RAID Controller with UDMA133 support (optional) AC97 Audio Codec Compliant with AC97 2.2 specification SYSTEM BIOS Award BIOS with Flash ROM in Firmware Hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0b specification MEMORY Two 184-pin DDR DIMM sockets to support Two 2.5V DD266 SDRAM Two 2.5V DDR333 SDRAM (emhanced) Maximum: 2GB (Unbuffered memory) I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB ports One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O ports Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA mode 2, Ultra DMA66/100) ATX12V power supply connector Ports, Headers and Others: IrDA header Two extra USB ports (USB1) Front panel Mic./Line-out header Chassis open detector header HDD LED, ACPI MSG LED, Reset switch, Power switch headers CPU, case and power supply fan headers RTC & BATTERY Intel® I/O Controller Hub 2 (ICH2) included 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 6 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR & LAYERS ATX (304mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
