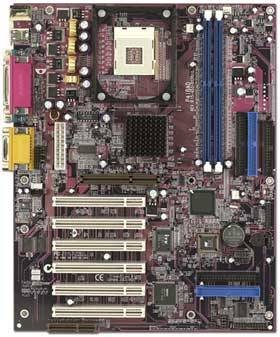

P4IBAD - ECS Elitegroup
PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET Intel® 82845 & 82801BA -- Memory Controller Hub (MCH), I/O Controller Hub 2 (ICH2) & Firmware Hub (FWH) with following features: Supports 4X AGP (AGP 2.0 Specification), 1.5V only LPC I/O: ITE 8712F HPT372 IDE RAID Controller with UDMA133 support (optional) AC97 Audio Codec Compliant with AC97 2.2 specification SYSTEM BIOS Award BIOS with Flash ROM in Firmware Hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0A specification MEMORY Two 184-pin DDR DIMM sockets for 2.5V DDR SDRAM (DDR266/DDR200) Maximum: 2GB I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB Ports One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O port Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 Support eight ATA/ATAPI devices (four optional) Standard: Dual PCI IDE interfaces - support four IDE devices (PIO Mode 4, DMA Mode 2, Ultra DMA66/100) Option: Two independent ATA channels for another four IDE devices (PIO Mode 4, DMA Mode 2, Ultra DMA66/100/133) ATX Power Supply Connector Ports, Headers and Others: IrDA header Additional two USB ports (LUSB1 or USB2) Front Panel MIC/Line-Out header Chassis open detector header Smart Card Reader header HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers CPU, Power and Case Fan headers LAN Card Wake Up / Internal Modem Ring Wake Up headers RTC & BATTERY Intel® I/O Controller Hub 2 (ICH2) included 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 6 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR ATX (304mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
