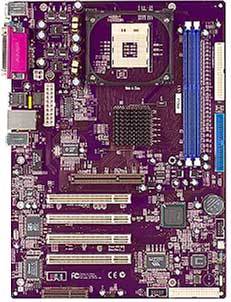

P4IBAD2 V5.1 - ECS Elitegroup
Special Features USB 2.0 Hardware Monitoring Processor Socket 478 for Intel Pentium 4 processor FSB 533/400 MHz Support Hyper Threading Technology Chipset Intel 845D & ICH2 North Bridge: Intel 845D South Bridge: Intel ICH2 Main Memory 2 x 184-pin DDR DIMM socket support up to 2 GB Support DDR266/200 2.5V DDR SDRAM Expansion Slots 4 PCI 1 AGP slot 1 CNR slot Storage Support by Intel ICH2: 4 x Ultra DMA100/66 devices USB VIA VT6202 support 4 ports USB2.0 Audio C-Media CMI9739A 6-channel audio CODEC Compliant with AC'97 2.2 specification LAN SiS900 10/100 Mbps Fast Ethernet Controller BIOS AMI 2Mb Firmware Hub Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Support ACPI revision 1.0 specification Rear Panel I/O 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 1 x RJ45 LAN connector 1 x Parallel port (LPT1) 1 x Serial port (COM1) 1 x Audio ports (Line-in, Line-out, Mic-in) Internal I/O Connectors and Headers 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector 1 x Floppy connector supports 360K~2.88M Bytes, 3 Mode FDDs or LS120 2 x IDE connectors 1 x IrDA for SIR header 1 x Speaker header 2 x USB 1.1 header support additional 4 USB ports 1 x USB card reader header 1 x Front panel switch/LED header 1 x Front panel audio header CD in header CPUFAN/CASFAN connectors Form Factor ATX (305mm*220mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
