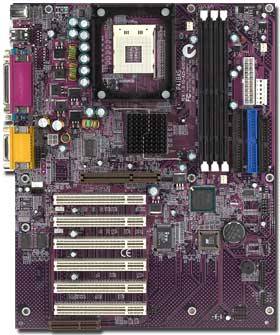

P4IBAS - ECS Elitegroup
PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET Intel® 82845 & 82801BA -- Memory Controller Hub (MCH), I/O Controller Hub 2 (ICH2) & Firmware Hub (FWH) with following features: Supports 4X AGP (AGP 2.0 Specification), 1.5V only Supports Ultra DMA100 (ATA100) LPC I/O: ITE 8712F AC97 Audio Codec: Compliant with AC97 2.2 specification SYSTEM BIOS Award BIOS with Flash ROM in Firmware Hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0A specification MEMORY Three 168-pin DIMM sockets for 3.3V SDRAM (PC133/PC100) Maximum: 3GB I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB Ports One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O port Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA66/100) ATX12V Power Supply Connectors Ports, Headers and Others: IrDA header Two additional USB headers Front Panel MIC/Line-Out header Chassis open detector header Green, HDD, power indicator LED headers HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers CPU, Case and Power Supply Fan headers LAN Card Wake Up / Internal Modem Ring Wake Up headers RTC & BATTERY Intel® I/O Controller Hub 2 (ICH2) included 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 6 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR ATX (304mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
