P4IBAS2 - ECS Elitegroup

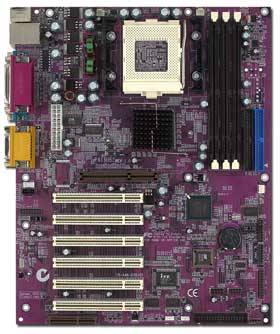

P4IBAS2 mainboard is an ATX mainboard that uses a 4-layer printed circuit board and measures 305 mm x 244 mm. The mainboard features a Socket 423 that accommodates Intel® Pentium® 4 processors supporting system bus (FSB) speeds up to 400 MHz and data bus< PROCESSORS Intel® Pentium® 4 processor (423 pins) CHIPSET Intel® 82845 & 82801BA -- Memory Controller Hub (MCH), I/O Controller Hub 2 (ICH2) & Firmware Hub (FWH) with following features: Supports 4X AGP (AGP 2.0 Specification), 1.5V only Supports Ultra DMA100 (ATA100) LPC I/O: ITE 8712F AC97 audio codec: Compliant with AC97 2.2 specification SYSTEM BIOS Award BIOS with Flash ROM in Firmware Hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full support for ACPI revision 1.0A specification MEMORY Three 168-pin DIMM sockets for 3.3V SDRAM (PC100, PC133) Maximum: 3GB I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB Ports 1 - EPP/ECP mode parallel port 2 - 16550 high-speed serial I/O port Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA66/100) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA header Two Extra USB ports (USB1 or LUSB1) Front Panel MIC/Line-Out header Chassis open detector header Green, HDD, power indicator LED headers HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers CPU and chasis fan headers LAN Card Wake Up / Internal Modem Ring Wake Up headers RTC & BATTERY Intel® I/O Controller Hub 2 (ICH2) included 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 6 PCI slots, 1 4X AGP slot, 1 CNR slot FORM FACTOR ATX (304mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
