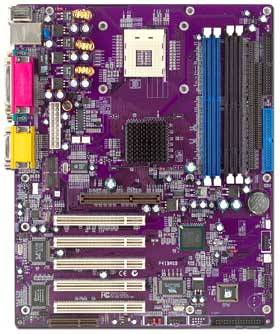

P4IBASD - ECS Elitegroup
You can turn on PC easily by using hot key or any keys. Users can power on their PCs by special LAN Card with this function. Integrated with VIA® VT6202 USB 2.0 host controller, this board provides the data transfers of 480Mbps to satisfy the most demanding peripheral and applications in today's PC market. PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor, up to 400MHz FSB CHIPSET Intel® 82845D & 82801BA -- Memory Controller Hub (MCH), I/O Controller Hub 2 (ICH2) & Firmware Hub (FWH) with following features: upports 4X AGP (AGP 2.0 Specification), 1.5V only LPC I/O: Winbond W83627HF-W VIA® VT6202 USB 2.0 Host Controller LAN: RealTek 8100B (optional) AC97 Audio Codec: Compliant with AC97 2.2 specification SYSTEM BIOS 2 DDR DIMM sockets and 2 DIMM sockets support (can not be used simultaneously) Two 184-pin 2.5V DDR SDRAM (DDR266/DDR200) or Two 168-pin 3.3V SDRAM (PC133/PC100) Maximum: 2GB (DDR SDRAM or SDRAM) MEMORY AMI BIOS with Flash ROM in Firmware Hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0A specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB Ports and an optional LAN connector One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O port Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA66/100) ATX Power Supply Connectors Ports, Headers and Others: Additional four USB ports (USB2 and JUSB2) Front Panel MIC/Line-Out header HDD LED, ACPI MSG LED, Reset Switch, Power Button headers CPU, Power and Chassis Fan headers LAN Card Wake Upheader RTC & BATTERY Intel® I/O Controller Hub 2 (ICH2) included 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 5 PCI slots, 1 AGP slot, 1 CNR slo FORM FACTOR ATX (304mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
