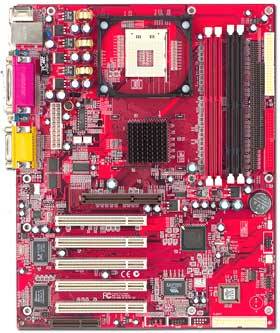

P4IBASD V3.X - ECS Elitegroup
Intel® Pentium® 4 board that supports host bus up to 533MHz FSB (enhanced) Integrated with the most advanced technologies: Keyboard power on LAN wake up Magic setting Hardware monitoring USB 2.0 PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET Intel® 82845D & 82801BA -- memory controller hub (MCH), I/O controller hub 2 (ICH2) & firmware hub (FWH) with following features: Supports 4X AGP (AGP 2.0 xpecification), 1.5V only LPC I/O: Winbond W83627HF-W VIA® VT6202 USB 2.0 host controller LAN: RealTek 8100B (optional) C-Media 9738 AC97 audio codec: Compliant with AC97 2.2 specification SYSTEM BIOS AMI BIOS with flash ROM in firmware hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, multi boot, DMI Full support for ACPI revision 1.0A specification MEMORY 2 DDR DIMM sockets and 2 DIMM sockets support (can not be used simultaneously) 2 184-pin 2.5V DDR SDRAM (DDR266/DDR200, DDR333 enhanced) or 2 168-pin 3.3V SDRAM (PC133/PC100) Maximum: 2GB (DDR SDRAM or SDRAM) I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB ports and an optional LAN connector 1 EPP/ECP mode parallel port 2 16550 high-speed serial I/O ports Audio ports (line-in, line-out, mic.-in, CD-in and game port) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 Dual PCI IDE interfaces - support 4 IDE devices (PIO mode 4, DMA mode 2, Ultra DMA66/100) ATX power supply connectors Ports, headers and others: IrDA header (SIR) Additional four USB ports (USB2 and JUSB2) Front panel mic./line-out header HDD LED, ACPI LED, power LED, reset switch, power button headers CPU, power and chassis fan headers LAN card wake up header RTC & BATTERY Intel® I/O controller hub 2 (ICH2) included 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 5 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR ATX (304mm x 244mm), 4 layers * Blue highlights means the difference between version 1.X CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
