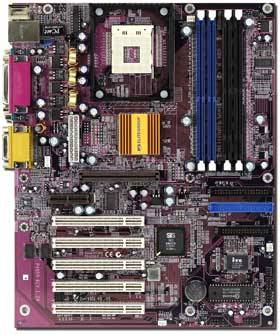

P4S5A - ECS Elitegroup
PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET SiS® 645 & SiS® 961 Chipset SiS® 645 Host/Memory controller with AGP4X North Bridge Single Chipset SiS® 961 MuTIOL Media I/O LPC I/O: ITE8705F System Hardware Monitor: Built-in ITE8705F LAN: MAC integrated in SiS® 961 & PHY on board (Optional) AC97 Audio Codec: Compliant with AC97 2.1 specification SYSTEM BIOS AMI 2MB Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0 specification MEMORY 2 DDR DIMM sockets and 2 DIMM sockets support (can not be used simultaneously) Two 184-pin 2.5V DDR SDRAM (DDR200, DDR266) or Two 168-pin 3.3V SDRAM (PC100, PC133) Maximum: 2.0GB (DDR SDRAM or SDRAM) I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB Ports and LAN connector (optional) One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O ports Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector Ports, Headers and Others: IrDA header Front Panel MIC/Line-out header Two Extra USB header HDD LED, Reset Switch, Power Switch headers CPU and Case Fan headers LAN Card Wake Up Header RTC & BATTERY SiS® 961 built-in 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 5 PCI slots, 1 AGP slot, 1 AMR slot FORM FACTOR ATX (305mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
