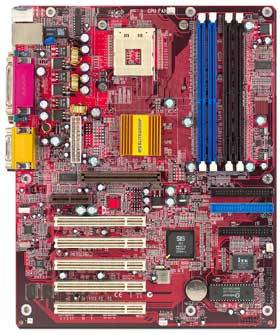

P4S5A/DX+ - ECS Elitegroup
Socket 478 board that supports Intel® Pentium® 4 processor up to 533MHz FSB Integrated with the most advanced technologies: LAN wake up Magic setting Keyboard power on USB 2.0 (SiS® 962L) With USB 2.0 host controller integrated in SiS® 962L chipset, this board provides the data transfers of 480Mbps to satisfy the most demanding peripheral and applications in today's PC market. PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET SiS® 645DX & SiS® 962L chipset SiS® 645DX host/memory controller with DDR333 and AGP4X North bridge single chipset SiS® 962L MuTIOL media I/O Integrated USB 2.0 host controller LPC I/O: ITE IT8705F System Hardware Monitor: Built-in ITE IT8705F LAN: 10/100 Mbps faster Ethernet (optional) AC97 Audio Codec: Compliant with AC97 2.2 specification SYSTEM BIOS AMI 2Mb flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, multi boot, DMI Support for ACPI revision 1.0 specification MEMORY 2 DDR DIMM sockets and 2 DIMM sockets support (can not be used simultaneously) Two 184-pin 2.5V DDR SDRAM (DDR333) or Two 168-pin 3.3V SDRAM (PC133/PC100) Maximum: 2GB (DDR SDRAM or SDRAM) I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors 4 USB ports and an optional LAN connector 1 EPP/ECP mode parallel port 2 16550 high-speed serial I/O ports Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA mode 2, Ultra DMA 66/100/133) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connector Ports, headers and others: IrDA header Front panel Mic./Line-out header 2 extra USB ports (USB1) HDD LED, Reset switch, Power switch headers CPU and system fan headers LAN card wake up header RTC & BATTERY SiS® 962L built-in 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 5 PCI slots, 1 AGP slot, 1 AMR slot FORM FACTOR & LAYERS ATX (305mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
