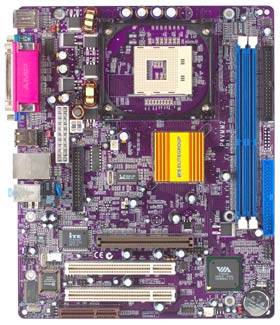

P4VMM2 V7.3 - ECS Elitegroup
Special Features Hardware Monitoring Keyboard Power On USB 2.0 Processors One Socket 478 supports the Intel Pentium 4 processor up to 533MHz FSB Chipset VIA P4M266A & VT8235 chipset with following features: integrated USB2.0 Host Controller Integrated ProSavage8 2D/3D graphic engine LPC I/O:ITE8705F System Hardware Monitor: Integrated in ITE IT8705F Integrated USB 2.0 host controller in VIA VT8235 LAN:10/100Mbps Faster Ethernet (optional) AC97 Audio Codec, compliant with AC97 2.1 specification BIOS AMI 2Mb Flash EEPROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Support ACPI revision 1.0 specification Memory 2 DDR DIMM Sockets supports two 184-pin 2.5V DDR SDRAM (DDR200/266), DDR333 (overclocking) Max. 2GB Expansion Slots 2 PCI slots 1 AGP slot 1 CNR slot I/O Interface PS/2 keyboard and PS/2 mouse connectors Four USB2.0 Ports and a LAN connector One EPP/ECP mode parallel port One 16550 high-speed serial I/O port One VGA connector Audio ports (Mic, Audio-in, Audio-out port) Dual PCI IDE interfaces : support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 100/133) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector IR header (SIR) Internal PC speaker header CD ROM/DVD Audio Input header 2 Extra USB Ports HDD LED, Reset Switch, Suspend LED, Power Switch headers CPU and chasis Fan headers RTC & Battery VT8235 included 256 byte of CMOS With CMOS hardware clear jumper Form Factor & Layers microATX (244mm*190mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
