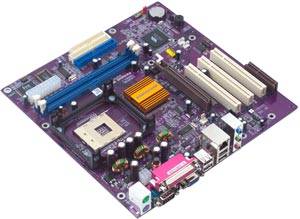

P4VMM2 V8.1 - ECS Elitegroup
HT Technology support By maximizing processor resources and enabling a single processor to run two separate threads of software simultaneously, the processor with Hyper Threading technology enhanced the system performance and responsiveness when running multiple applications Supports 533MHz front side bus Intel Pentium 4 CPU ATA133 Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up to 133MB/s 6-Channel Audio Onboard 6-Channel Audio CODEC supports uncompromising DVD audio quality, bringing a more vivid sound experience and high-quality 6-channel audio without having to buy advanced sound cards 10/100 LAN 10/100 LAN provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card Processors Socket 478 for Intel Pentium 4 processor FSB 533/400 MHz Support Hyper-Threading Technology Chipset VIA® P4M266A & VT8235 North Bridge: VIA® P4M266A South Bridge: VIA® VT8235 BIOS Award BIOS with 2Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Muli Boot, DMI Full Support for ACPI revision 1.0 specification Memory 2 x 184-pin DDR DIMM socket support up to 1 GB Support DDR266/200 2.5V DDR SDRAM Expansion Slots 1 x AGP 4X slot 3 x PCI slots 1 x CNR slot Graphics Integrated S3 ProSavage8 2D/3D Graphics Share Memory : 8/16/32MB Storage Support by VIA® VT8235: 4 x Ultra DMA133/100/66 devices Audio Realtek ALC655 6-Channel audio CODEC Compliant with AC'97 2.3 specification LAN VIA® VT6103 10/100 Mbps Fast Ethernet PHY Rear Panel I/O 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 1 x RJ45 LAN connector 1 x VGA port 1 x Parallel port (LPT1) 1 x Serial port (COM1) 1 x Audio ports (Line-in, Line-out, Mic-in) Internal I/O 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector 1 x Floppy connector supports 360K~2.88M Bytes, 3 Mode FDDs or LS120 2 x IDE connectors 1 x IrDA for SIR header 1 x SPDIF out header 1 x USB 2.0 header support additional 2 USB ports 1 x Front panel switch/LED header 1 x Front panel audio header CD in/ AUX in headers CPUFAN/CASFAN connectors Form Factor & Layers Micro-ATX Size (244mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
