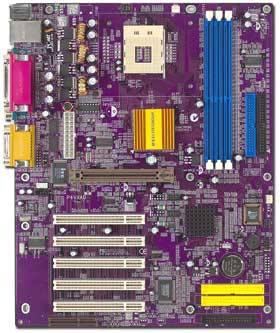

P4VXAD+ - ECS Elitegroup
Socket 478 board that supports Intel® Pentium® 4 processor up to 533MHz FSB Integrated with the most advanced technologies: Suspend to RAM Magic Setting Hardware Monitoring Keyboard Power On USB 2.0 PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET VIA® P4X333 (NB) & VT8235 (SB) chipset with following features: P4X333 V-link host system controller and VT8235 V-link client to PCI/LPC bridge Peak bandwidth 533MB/S 8 bit V-link host controller LPC I/O - IT8705F System hardware monitor: Built-in IT8705F VIA VT8235 USB 2.0 host controller LAN: 10/100 Mbps faster Ethernet on board (optional) PROMISE PDC20265R IDE RAID controller (optional) AC97 Audio Codec: Compliant with AC97 2.2 specification SYSTEM BIOS Award 2Mb Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0 specification MEMORY 3 DDR DIMM sockets support: 3 2.5V DDR SDRAMs (DDR333/DDR266/DDR200) Maximum: 1.5GB (Unbuffered memory) I/O INTERFACE PS/2 keyboard and PS/2 mouse connectors Dual USB ports and an optional LAN connector 1 - EPP/ECP mode parallel port 2 - 16550 high-speed serial I/O ports Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Supports 4 ATA/ATAPI devices and 4 ATA devices for RAID function (optional) Standard: dual PCI IDE interfaces - support 4 IDE devices (PIO mode 4, DMA mode 2, Ultra DMA 66/100/ 133) Option: 2 independent ATA channels for another 4 IDE devices (PIO mode 4, DMA mode 2, Ultra 66/100) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA header (STR) Front panel Mic./Line-out header 4 extra USB ports (USB2 and USB3) HDD LED, Reset switch, Power switch headers CPU and case fan headers RTC & BATTERY VT8235 included 256 bytes of CMOS With CMOS hardware clear jumper EXPANSION SLOTS 5 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR ATX (305mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
