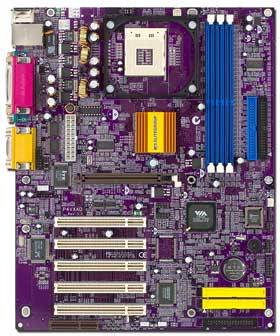

P4VXAD V3.X - ECS Elitegroup
PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET VIA® P4X266/A (VT8753) & VT8233 VT8753 V-Link Host system controller and VT8233 V-Link Client to PCI/LPC bridge Peak Bandwidth 266MB/S 8-bit V-link Host Controller LPC I/O - IT8705F System hardware monitor: Built-in IT8705F VIA® VT6202 USB 2.0 Host Controller (optional) LAN: RealTek 8100/B (optional) PROMISE PDC20265R IDE RAID controller (optional) AC97 Audio Codec: Compliant with AC97 2.2 specification SYSTEM BIOS Award 2Mb Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0 specification MEMORY Three 184-pin DDR DIMM sockets for 2.5V DDR SDRAM (DDR266/DDR200) Maximum: 1.5GB (Unbuffered Memory) I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB Ports and an optional LAN connector 1 - EPP/ECP mode parallel port 2 - 16550 high-speed serial I/O ports Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA mode 2, Ultra DMA 66/100) Supports eight ATA/ATAPI devices (four optional) Standard: Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100/133) Option: Two independent ATA channels for another four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA header (STR) Front panel Mic./Line-out header Two extra USB ports (USB2 and USB3) HDD LED, Reset switch, Power switch headers CPU, power and case fan headers LAN Card Wake Up/Internal Modem Ring Wake Up headers RTC & BATTERY VT8233A included 256 bytes of CMOS With CMOS hardware clear jumper EXPANSION SLOTS 5 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR ATX (305mm*244mm), 4 Layers * Blue highlights means the difference between version 1.X CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
