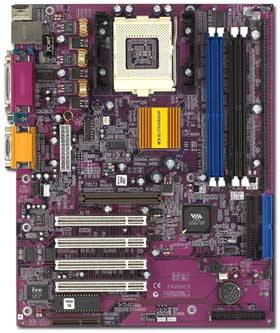

P4VXASD - ECS Elitegroup
PROCESSORS Socket 423 supports the Intel® Pentium® 4 processor CHIPSET VIA® P4X266/A (NB) & VT8233 (SB) VT8753 V-Link Host system controller and VT8233 V-Link Client to PCI/LPC bridge Peak Bandwidth 266MB/S 8-bit V-link Host Controller LPC I/O: ITE8705F System Hardware Monitor: Integrated in ITE8705F LAN: MAC Integrated in VT8233 & VT6103 PHY on board (optional) AC97 audio codec: Compliant with AC97 2.1 specification SYSTEM BIOS AMI 2Mb Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0 specification MEMORY 2 DDR DIMM Sockets and 2 DIMM sockets support (can not be used simultaneously) Two 184-pin 2.5V DDR SDRAM (DDR266/DDR200) or Two 168-pin 3.3V SDRAM (PC133/PC100) Maximum: 2GB DDR or SDRAM (Buffered) / 1GB DDR or SDRAM (Unbuffered) I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB Ports and LAN connector 1 - EPP/ECP mode parallel port 2 - 16550 high-speed serial I/O port Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA66/100) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA header Front Panel MIC/Line-Out header Four Extra USB headers HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers CPU and chasis fan headers LAN Card Wake Up / Internal Modem Ring Wake Up headers RTC & BATTERY VT8233 included 256 bytes of CMOS With CMOS hardware clear jumper EXPANSION SLOTS 4 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR ATX (305mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
