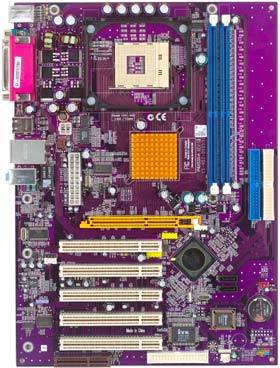

P4X533-A V1.0 - ECS Elitegroup
Special Features FSB 533 HT CPU Support DDR 333 Serial ATA AGP 8X 6 Channel Audio CPU Socket 478 for Intel Pentium 4 processor FSB 533/400 MHz Support Hyper-Threading Technology Chipset VIA® P4X533 & VT8237 North Bridge: VIA® P4X533 South Bridge: VIA® VT8237 Memory 2 x 184-pin DDR DIMM socket support up to 2 GB Support DDR333/266/200 2.5V DDR SDRAM Expansion Slot 1 x AGP 8X/4X slot 5 x PCI slots 1 x CNR slot Storage Support by VIA® VT8237 4 x Ultra DMA133/100/66 devices 2 x Serial ATA devices RAID0 & RAID1 configuration Audio Realtek ALC655 6-Channel audio CODEC Compliant with AC'97 2.3 specification LAN VIA® VT6103 10/100 Mbps Fast Ethernet PHY Rear Panel I/O 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 1 x RJ45 LAN connector 1 x Parallel port (LPT1) 1 x Serial port (COM1) 1 x Audio ports (Line-in, Line-out, Mic-in) Internal I/O Connectors and Headers 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector 1 x Floppy connector supports 360K~2.88M Bytes, 3 Mode FDDs or LS120 2 x IDE connectors 2 x Serial ATA connectors 2 x USB 2.0 header support additional 4 USB Ports 1 x Speaker header 1 x SPDIF out header 1 x Front panel switch/LED header 1 x Front panel audio header CD in/ AUX in headers CPUFAN/CASFAN connectors System BIOS AMI BIOS with 2Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Muli Boot, DMI Full Support for ACPI revision 1.0 specification Form Factor ATX Form Factor, 305*220mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
