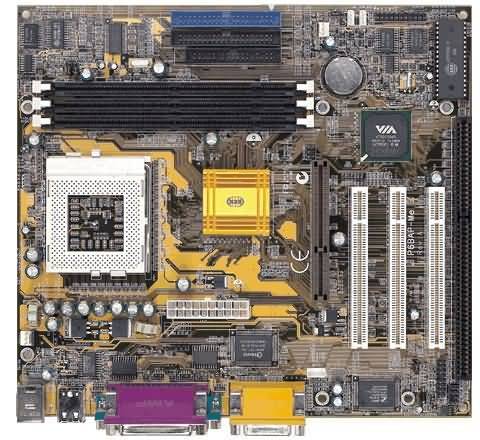

P6BAP-Me- ECS
PROCESSORS FC-PGA Pentium®III up to 850MHz(100MHz FSB) and up to 1GHz(133MHz FSB) Celeron™ PPGA up to 533MHz / FC-PGA up to 800MHz Cyrix III up to 550MHz(100MHz FSB) and up to 600MHz(133MHz FSB) CHIPSET VIA® VT82C693A & VT82C596BChipset PnP Ultra I/O - Winbond W83977EF CMI8738 PCI 3D Audio / HSP 56Kflex/V.90 Modem Chip System Hardware Monitor Chip: GL520SM MEMORY Three 168-pin DIMM Sockets for 3.3V SDRAM (Ready for PC100, PC133) Maximum: SDRAM-384MB, Registered SDRAM-768MB SYSTEM BIOS Award 2MB Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI I/O INTERFACE Supports Plug and Play function One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O port Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66) PS/2 keyboard and PS/2 mouse connectors ATX Power Supply Connector Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Two sets of USB connector Other ports IrDA ASKIR Header Green, HDD, power indicator LED headers CPU Fan and Chassis Fan Headers LAN Card Wake Up / Internal Modem Ring Wake-Up Headers RTC & BATTERY VIA® VT82C596B included 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 1 ISA slot, 3 PCI slots (One shared), 1 AGP slot FORM FACTOR microATX (245mm*230mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
