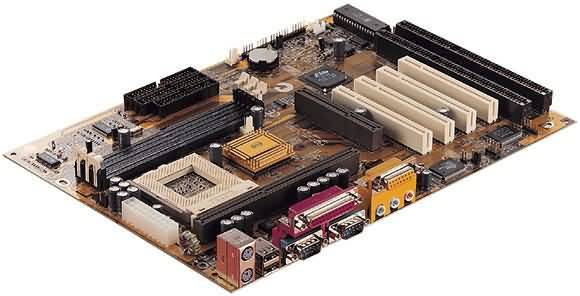

P6BAT-A+ - ECS
PROCESSORS SECC2 Pentium III up to 850MHz(100MHz FSB), Pentium II Celeron PPGA up to 533MHz CHIPSET Elite BX CMI8738 PCI 3D Audio Chip on board MEMORY Three 168-pin DIMMs Maximum: 384MB SYSTEM BIOS Award BIOS I/O INTERFACE Supports Plug and Play function One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O ports (2 connectors) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 Dual PCI IDE interfaces - supports four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66) PS/2 keyboard and PS/2 mouse connectors ATX Power Supply Connector Audio Ports(Line-in, Line-out, Mic-in, CD-in and game port) Two sets of USB connector Other ports IrDA ASKIR Header Green, HDD, Power indicator LED Connectors CPU Fan and Chassis Fan Headers LAN Card Wake Up/Internal Modem Ring Wake-Up Headers RTC & BATTERY Intel 82371EB (PIIX4E) included 256 bytes CMOS SRAM FORM FACTOR ATX (305mm*220mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
