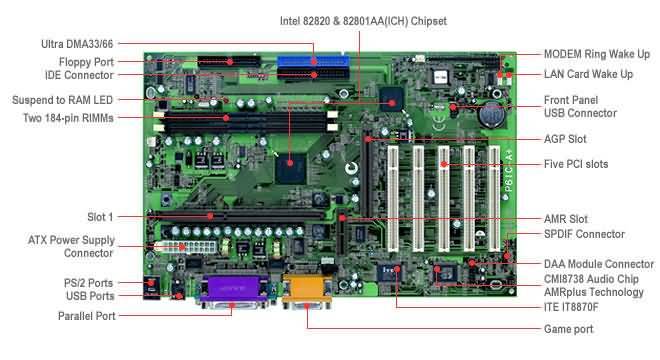

P6IC-A+- ECS
PROCESSORS Pentium®III processor 533/600/677/733MHz (133FSB) Pentium®III processor 450/500/550/600/650/700MHz (100FSB) Pentium®II processor 350/400/450/500MHz CHIPSET Intel® 82820 & 82801AA -- Memory Controller Hub (MCH), I/O Controller Hub(ICH) & Firmware Hub (FWH) Support AGP 2.0 specification (4X) AC97 Audio/Modem interface Support Ultra DMA66 (ATA66) ITE LPC I/O - IT8770F CMI8738 PCI 3D Audio/HSP 56Kflex/V.90 Modem Chip MEMORY Two 184-pin Rambus In-Line Memory Module (RIMM) Socket to support 300&400MHz Direct Rambus Channel Maximum: 1GB SYSTEM BIOS Award BIOS with 4MB Flash ROM in Firmware Hub(FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full Support for ACPI revision 1.0 specification I/O INTERFACE Supports Plug and Play function One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O ports Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66) PS/2 keyboard and PS/2 mouse connectors ATX Power Supply Connector Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Two sets of USB connectors ports, Headers and Others: IrDA/CIR cable Header Green, HDD, Power indicator LED Connectors CPU Fan, Power Fan and Chassis Fan Headers LAN Card Wake Up/Internal Modem Ring Wake-Up Headers RTC & BATTERY Intel® I/O Controller Hub (ICH) included 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 5 PCI slots, 1 AGP slot, 1 AMR slot FORM FACTOR ATX (304mm*200mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
