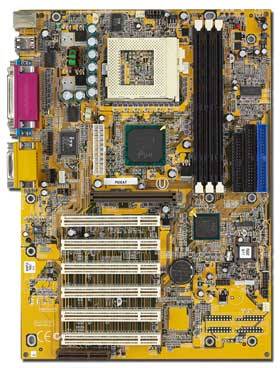

P6IEAT - ECS Elitegroup
PROCESSORS Socket 370 supports the Intel® Celeron™ FC-PGA 533A, 566 & >566MHz (66MHz FSB) processors FC-PGA Pentium® III / FC-PGA2 Pentium® III (Tualatin) series processors (100/133MHz FSB) CHIPSET Intel® 82815E B-Step & 82801BA -- Graphics Memory Controller Hub (GMCH), I/O Controller Hub 2 (ICH2) & Firmware Hub (FWH) with following features: Support 4X AGP (AGP 2.0 specification) AC97 Audio / Modem finterface Support Ultra DMA100 (ATA100) ITE LPC I/O - IT8712F AC97 Audio Codec SYSTEM BIOS Award BIOS with Flash ROM in Firmware Hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0 specification MEMORY Three 168-pin DIMM sockets for 3.3V SDRAM (Ready for PC100, PC133) Maximum: 512MB I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Four USB Ports (Two USB Connectors as header on board) 1 - EPP/ECP mode parallel port 2 - 16550 high-speed serial I/O ports Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA header Extra USB header VGA Header Front Panel MIC/Line-Out header Chassis open detector header HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers CPU and Case Fan headers LAN Card Wake Up / Internal Modem Ring Wake-Up headers RTC & BATTERY Intel® I/O Controller Hub 2 (ICH2) included 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 6 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR ATX (304mm*222mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
