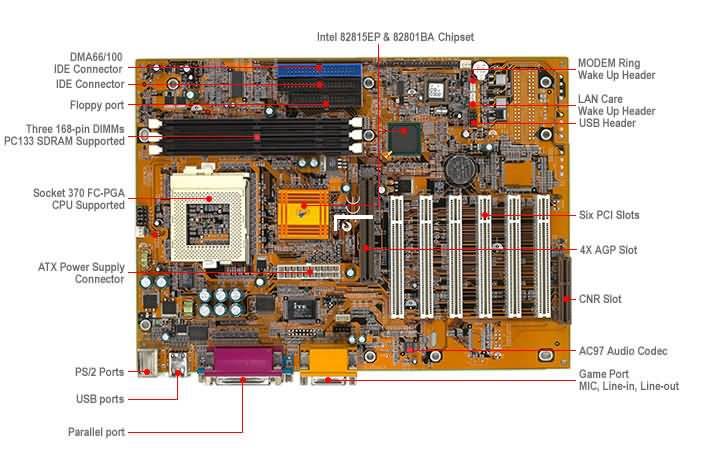

P6IPA- ECS
PROCESSORS Celeron™ FC-PGA processors up to 766MHz(66MHz FSB) and up to 800MHz(100MHz FSB) Intel® FC-PGA Pentium® III processors up to 850MHz(100MHz FSB) and 1GBz(133MHz FSB) Cyrix® III processors up to 600MHz(100MHz FSB) and up to 667MHz(133MHz) Cyrix® III-2(64K cache) processors up to 650MHz(100MHz FSB) and up to 667MHz(133MHz) CHIPSET Intel® 82815EP & 82801BA -- Graphics Memory Controller Hub (GMCH), I/O Controller Hub 2 (ICH2) & Firmware Hub (FWH) with following features: Support 4X AGP (AGP 2.0 specification) AC97 Audio / Modem finterface Support Ultra DMA100 (ATA100) ITE LPC I/O - IT8712F AC97 Audio Codec MEMORY Three 168-pin DIMM sockets for 3.3V SDRAM (Ready for PC100, PC133) Maximum: 768MB SYSTEM BIOS Award BIOS with Flash ROM in Firmware Hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full support for ACPI revision 1.0A specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Four USB Ports (Two USB Connectors as header on board) One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O ports Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66/100) ATX Power Supply Connector Ports, headers and others: IrDA header Extra (Front Panel) MIC / Line-Out header Chassis open detector header Green, HDD, Power indicator LED headers CPU and Case Fan headers LAN Card Wake Up / Internal Modem Ring Wake-Up headers RTC & BATTERY Intel I/O Controller Hub 2 (ICH2) included 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 6 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR ATX (304mm*222mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
