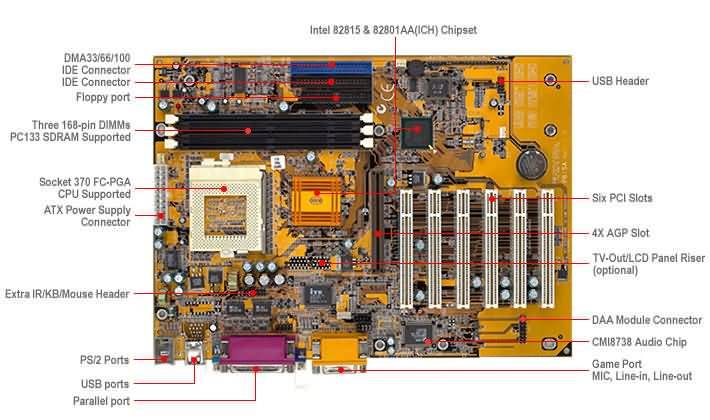

P6ISA- ECS
PROCESSORS Intel® Celeron™ FC-PGA processors up to 800MHz Intel® FC-PGA Pentium® III processors up to 850MHz(100MHz FSB) and up to 1GHz(133MHz FSB) Cyrix® III processors up to 550MHz(100MHz FSB) and up to 600MHz(133MHz) CHIPSET Intel® 82815 & 82801AA -- Graphics Memory Controller Hub (GMCH), I/O Controller Hub (ICH) & Firmware Hub (FWH) with following features: Support External AGP (4X AGP, AGP 2.0 specification) & Internal AGP (2X AGP) Support Ultra DMA66 (ATA66) ITE LPC I/O - IT8712F CMI8738-037C-SX PCI 3D audio/HSP 56Kflex/V.90 Modem Chip LAN: RealTek 8139C MEMORY Three 168-pin DIMMs sockets for 3.3V SDRAM (Ready for PC100/PC133) Maximum: 512MB SYSTEM BIOS Award BIOS with 4MB Flash ROM in Firmwave Hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full Support for ACPI revision 1.0A specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Four USB Ports (Two USB Connectors as header onboard) One - EPP/ECP mode parallel port One -16550 high-speed serial I/O ports One VGA Port Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Supports 360K~2.88M Bytes, 3 Mode FDDs or LS120 Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66) ATX Power Supply Connector ports, Headers and Others: IrDA header Extra KB/IR/Mouse header Extra MIC/Line-Out header COM Port header (or COM 2) Header for Modem DAA Module Chassis open detector header Green, HDD, Power indicator LED headers CPU and Case Fan headers Modem Ring Wake-Up Headers RTC & BATTERY Intel® I/O Controller Hub (ICH) included 256 bytes CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 6 PCI Slots, 1 AGP Slot 1 TV-Out/LCD Panel Riser Slot (optional) FORM FACTOR ATX Size (304mm*220mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
