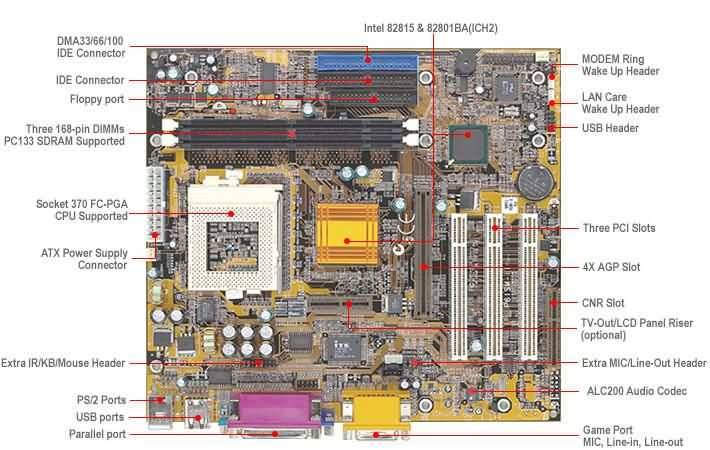

P6ISM-II - ECS
PROCESSORS Intel® Celeron™ FC-PGA processors up to 800MHz Intel® FC-PGA Pentium® III processors up to 850MHz(100MHz FSB) and up to 933MHz(133MHz FSB) Cyrix® III processors up to 550MHz(100MHz FSB) and up to 600MHz(133MHz) CHIPSET Intel® 82815 & 82801BA -- Garphics Memory Controller Hub (GMCH), I/O Controller Hub 2 (ICH2) & Firmware Hub (FWH) with following features: Support External AGP (4X AGP, AGP 2.0 specification) & Internal AGP (2X AGP) AC97 audio / Modem interface Support Ultra DMA100 (ATA100) ITE LPC I/O - IT8712F AC97 Audio Codec: Avance ALC200 (RealTek) MEMORY Two 168-pin DIMM sockets for 3.3V SDRAM (Ready for PC100/PC133) Maximum: 512MB SYSTEM BIOS Award BIOS with 4MB Flash ROM in Firmwave Hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full Support for ACPI revision 1.0A specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Four USB Ports (Two USB Connectors as header on board) One - EPP/ECP mode parallel port One -16550 high-speed serial I/O ports One VGA Connector Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Supports 360K~2.88M Bytes, 3 Mode FDDs or LS120 Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66/100) ATX Power Supply Connector ports, Headers and Others: IrDA header Extra KB/IR/Mouse header Extra MIC/Line-Out header COM Port header (or COM 2) Chassis open detector header Green, HDD, Power indicator LED headers CPU and Case Fan headers LAN Card Wake Up / Internal Modem Ring Wake-Up headers RTC & BATTERY Intel® I/O Controller Hub 2 (ICH2) included 256 bytes CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 3 PCI Slots, 1 AGP Slot, 1 CNR slot 1 TV-Out/LCD Panel Riser slot (optional) FORM FACTOR microATX (244mm*222mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
