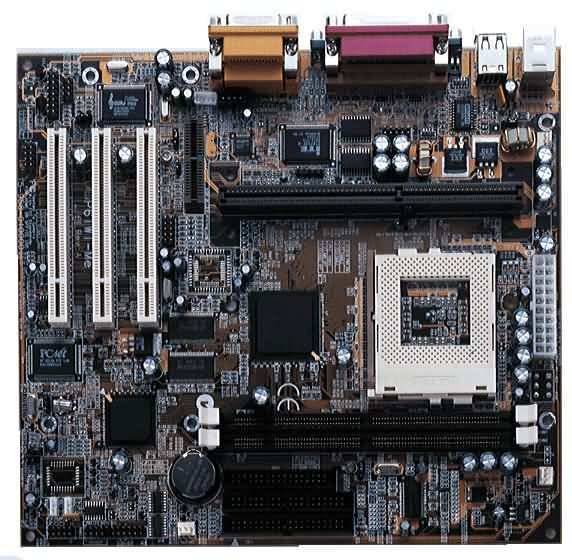

P6IWT-Me - ECS
PROCESSORS SECC2 Pentium® III processors up to 850 MHz(100MHz FSB) Pentium® II series processors Celeron™ PPGA processors up to 533MHz CHIPSET Intel® 810E Chipset integrated with Graphics Controller Hub (GMCH0), I/O Controller Hub (ICH0) & Firmware Hub (FWH) with Integrated graphics controller AC97 Audio / Modem interface ITE LPC I/O - IT8870F Elite CMI8738 PCI 3D Audio/HSP56Kflex/V.90 Modem Chiip CH7007 Digital PC to TV encoder (Option) PCNet DM9102 LAN chip on board MEMORY Two 168-pin DIMMs socket for 3.3V SDRAM (Ready for PC100) Maximum: 512MB SYSTEM BIOS Award BIOS with 4MB Flash ROM in Firmware Hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full support for ACPI revision 1.0A specification I/O INTERFACE Supports Plug and Play function One - EPP/ECP mode parallel port One - 16550 high-speed serial I/O port Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66) PS/2 keyboard and PS/2 mouse connectors ATX Power Supply Connector Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Two sets of USB connectors Modem extension bracket VGA Connector Header for LAN bracket (option) Other ports IrDA cable Header Green, HDD, Power indicator LED Connectors CPU Fan, Power Fan and Chassis Fan Headers LAN Card Wake Up/Internal Modem Ring Wake-Up Headers RTC & BATTERY 256 bytes CMOS SRAM included in Intel I/O Controller Hub(ICH0) With CMOS SRAM hardware clear jumper FORM FACTOR microATX (244mm*222mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
