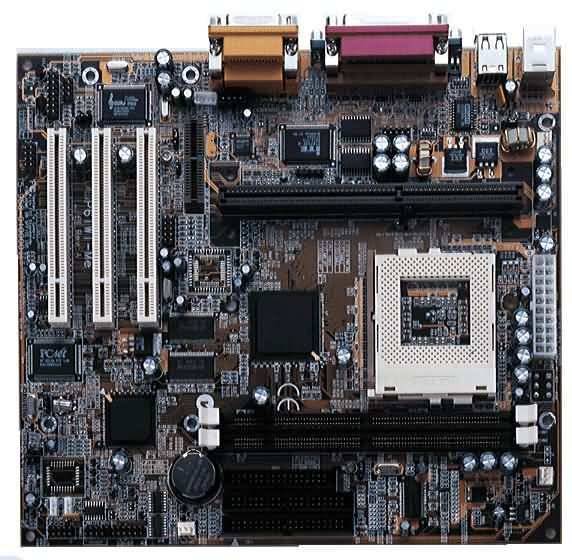

P6IWT-Me i810E - ECS
PROCESSORS SECC2 Pentium® III processors up to 850 MHz(100MHz FSB) Pentium® II series processors Celeron™ PPGA processors up to 533MHz CHIPSET Intel® 810E Chipset ITE LPC I/O - IT8870F Elite CMI8738 PCI 3D Audio/HSP56Kflex/V.90 Modem Chiip CH7007 Digital PC to TV encoder (Option) PCNet DM9102 LAN chip on board MEMORY Two 168-pin DIMMs socket for 3.3V SDRAM (Ready for PC100) Maximum: 512MB SYSTEM BIOS Award BIOS with 4MB Flash ROM in Firmware Hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full support for ACPI revision 1.0A specification I/O INTERFACE Supports Plug and Play function One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O ports Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33) PS/2 keyboard and PS/2 mouse connectors ATX Power Supply Connector Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Two sets of USB connectors Modem extension bracket VGA Connector TV-out header (Option) LAN bracket Other ports IrDA cable Header Green, HDD, Power indicator LED Connectors CPU Fan, Power Fan and Chassis Fan Headers LAN Card Wake Up/Internal Modem Ring Wake-Up Headers RTC & BATTERY 256 bytes CMOS SRAM included in Intel I/O Controller Hub(ICH0) With CMOS SRAM hardware clear jumper FORM FACTOR microATX (244mm*222mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
