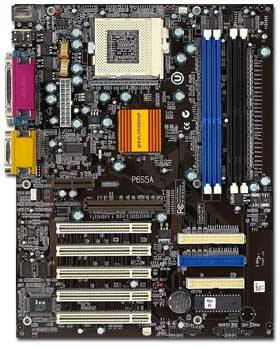

P6S5AT - ECS Elitegroup
PROCESSORS Socket 370 supports the Intel® Celeron™ series processors Socket 370 supports FC-PGA Pentium® III series processors including the newest Tualatin CPU CHIPSET SiS® 635T System Chipset Super I/O and LPC - ITE8705 System Hardware Monitor: Built-in ITE8705 AC97 Audio Codec SYSTEM BIOS AMI 2MB Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification MEMORY 2 DDR DIMM sockets and 2 DIMM sockets support (can not be used simultaneously) Two 184-pin DDR SDRAM (DDR266, DDR200) or Two 168-pin 3.3V SDRAM (PC100, PC133) Maximum: 1GB (DDR or SDRAM) I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Four USB Ports (Two USB Connectors as header onboard) 1 - EPP/ECP mode parallel port 2 - 16550 high-speed serial I/O ports Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66/100) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA Cable header Extra USB header Green, HDD, Power indicator LED headers CPU and Case Fan headers Two CD-In headers RTC & BATTERY SiS® 635T built-in 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 5 PCI slots, 1 AGP slot, 1 AMR slot FORM FACTOR ATX (305mm x 235mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
