P6SEP-Me - ECS Elitegroup

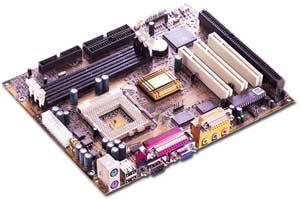

P6SEP-Me mainboard is a micro-ATX board measuring 243.84mm by 200mm and using a 4-layer printed circuit board. This board features a PPGA370 ZIF (Zero Insertion Force) processor socket. This socket can be installed with the latest generation of Intel Cele mory. The mainboard has integrated 2D/3D graphics, and integrated 3D audio, so a usable system can be created with the addition of just memory modules and a Celeron processor. This is a powerful platform that combines the low-cost/high-performance feature PROCESSORS Socket 370 supports the Intel® Celeron™ PPGA series processors CHIPSET SiS® 620/5595 VGA Chip embedded is SiS® 620 CMI8738 PCI Audio SYSTEM BIOS Award Flash MEMORY Three 168-pin DIMM sockets Maximum: 1.5GB I/O INTERFACE PS/2 keyboard and PS/2 mouse connectors One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O ports (1 connector, 1 bracket) Two sets of USB connector Audio Port Dual PCI IDE interfaces - supports four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA TX/RX Headers Green, HDD, Power indicator LED headers CPU Fan, Power Fan and Chassis Fan Headers LAN Card Wake Up/Internal Modem Ring Wake-Up headers RTC & BATTERY SiS5595 included 256 bytes CMOS SRAM EXPANSION SLOTS 1 ISA slot, 3 PCI slots, 1 ISA/PCI slot FORM FACTOR micro ATX CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
