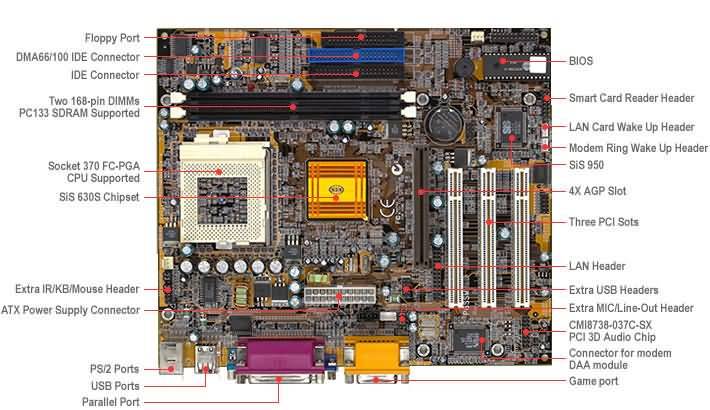

P6SSM - ECS
PROCESSORS Celeron™ PPGA/FC-PGA series processors FC-PGA Pentium® III series processors CHIPSET SiS® 630S System Chipset Super I/O - SiS®950 System Hardware Monitor: Built-in SiS®950 CMI8738-037C-SX PCI 3D Audio/HSP 56Kflex/V.90 Modem Chip VGA: Integrated in SiS®630S MEMORY Two 168-pin DIMMs sockets for 3.3V SDRAM (Ready for PC100, PC133) Maximum: 1GB SYSTEM BIOS Award 2MB Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full Support for ACPI revision 1.0 specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Four USB Ports (Two USB Connectors as header onboard) One - EPP/ECP mode parallel port One - 16650 high-speed serial I/O port Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector ports, Headers and Others: IrDA Cable header COM Port header VGA header Two CD-In headers Smart Card Reader header Extra IR/KB/Mouse header Extra MIC/Line-Out header LAN header (NR1) Header for Modem DAA module Green, HDD, power indicator LED headers CPU and Case Fan headers LAN Card Wake Up/Internal Modem Ring Wake-Up headers RTC & BATTERY SiS® 630S built-in 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 3 PCI slots, 1 AGP slot FORM FACTOR microATX (244mm*210mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
