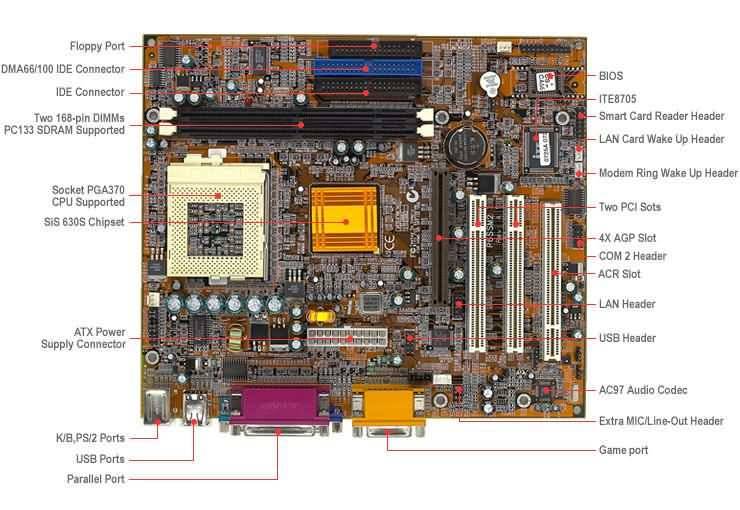

P6SSM2- ECS
PROCESSORS Intel® Celeron™ PPGA processors up to 533MHz / FC-PGA processors up to 800MHz Intel® FC-PGA Pentium® III processors up to 850MHz(100MHz FSB) and 1GBz(133MHz FSB) Cyrix® III processors up to 550MHz(100MHz FSB) and up to 600MHz(133MHz) CHIPSET SiS® 630S System Chipset Super I/O - ITE8705 System Hardware Monitor: Built-in ITE8705 AC97 Audio Codec Compliant with AC97 2.1 specification VGA: Integrated in SiS®630S LAN: MAC integrated in SiS®630S+PHY on board MEMORY Two 168-pin DIMMs sockets for 3.3V SDRAM (Ready for PC100, PC133) Maximum: 1GB SYSTEM BIOS Award 2MB Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full Support for ACPI revision 1.0 specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Four USB Ports (Two USB Connectors as header onboard) One - EPP/ECP mode parallel port One - 16650 high-speed serial I/O port One VGA Connector Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector ports, Headers and Others: IrDA Cable header COM Port header LAN header Two CD-In headers Smart Card Reader header Extra MIC/Line-Out header Green, HDD, power indicator LED headers CPU and Case Fan headers LAN Card Wake Up/Internal Modem Ring Wake-Up headers RTC & BATTERY SiS® 630S built-in 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 2 PCI slots, 1 AGP slot, 1ACR slot FORM FACTOR microATX (244mm*210mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
