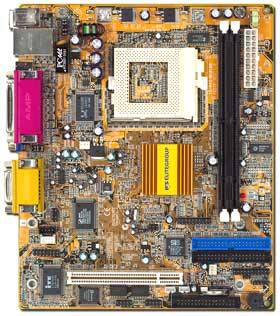

P6STF - ECS Elitegroup
PROCESSORS Socket 370 supports the Intel® Celeron™ PPGA/FC-PGA II series processors Socket 370 supports FC-PGA Pentium® III / FC-PGA2 Pentium® III (Tualatin) series processors Socket 370 supports the C3 series processors CHIPSET SiS® 630ST System Chipset Super I/O and LPC - ITE8705 System Hardware Monitor: Built-in ITE8705 Graphics: Integrated video sub-system with SiS® 630ST SiS®301B chip on board to provide the TV-Out function CMI8738 PCI 3D Audio/HSP 56Kflex/V.90 Modem Chip LAN: RealTek 8100B SYSTEM BIOS Award 2Mb Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI/ Full support for ACPI revision 1.0 specification MEMORY Two 168-pin DIMMs sockets for 3.3V SDRAM (Ready for PC133/PC100) Maximum: 1GB I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB Ports and LAN connector 1 - EPP/ECP mode parallel port TV-Out connextors (1Video out RCA jack, 1 S-Video mini-Din port) One VGA connector Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA Cable header COM1 and COM2 headers Two CD-In headersli Header for Modem DAA module Green, HDD, Power indicator LED headers CPU and Case Fan headers LAN Card Wake Up/Internal Modem Ring Wake-Up headers RTC & BATTERY SiS® 630ST built-in 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 1 PCI slots FORM FACTOR FlexATX (229mm x 190mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
