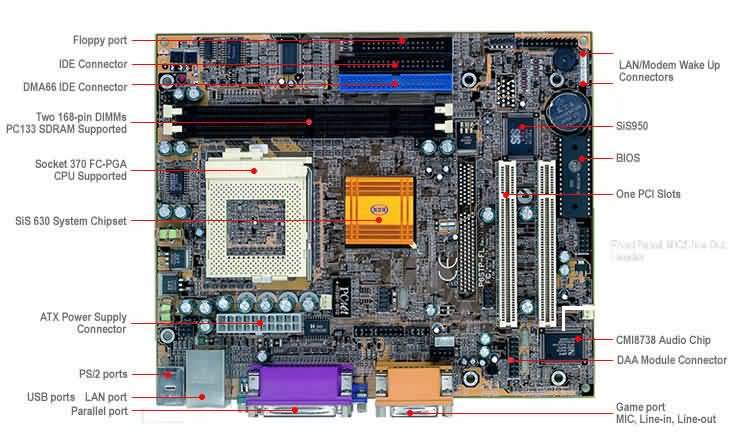

P6STP-FL - ECS
PROCESSORS FC-PGA Pentium®III up to 850MHz(100MHz FSB) and up to 1GHz(133MHz FSB) Celeron™ PPGA up to 533MHz / FC-PGA up to 800MHz Cyrix III up to 550MHz(100MHz FSB) and up to 600MHz(133MHz FSB) CHIPSET SiS 630E System Chipset Super I/O and LPC - SiS950 System Hardware Monitor: Built-in SiS950 Graphics: Integrated video sub-system with SiS 630 CMI8738 PCI 3D Audio/HSP 56Kflex/V.90 Modem Chip LAN: Full duplex and half duplex mode for both 10 and 100Mbps (optional) MEMORY Two 168-pin DIMM Sockets for 3.3V SDRAM (Ready for PC100, PC133) Maximum: 1GB SYSTEM BIOS Award 2MB Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full Support for ACPI revision 1.0 specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB Ports and LAN connector One - 16550 high-speed serial I/O port One VGA connector Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector ports, Headers and Others: SPDIF In/Out header for digital audio interface (Optional) IrDA Cable header Header for Modem DAA module Green, HDD, power indicator LED headers CPU and Case Fan headers LAN Card Wake Up/Internal Modem Ring Wake-Up headers RTC & BATTERY SiS 630 built-in 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 2 PCI slots FORM FACTOR FlexATX (220mm*190mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
