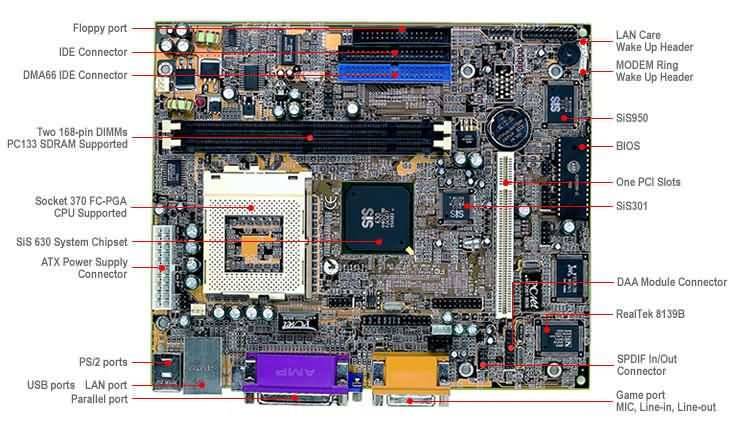

P6STP-FN- ECS
PROCESSORS Celeron™ PPGA up to 533MHz / FC-PGA up to 800MHz FC-PGA Pentium III up to 850MHz(100MHz FSB) and up to 1GHz(133MHz FSB) Cyrix III up to 600MHz(133MHz FSB) CHIPSET SiS 630 System Chipset Super I/O and LPC - SiS950 System Hardware Monitor: Built-in SiS950 Graphics: Integrated video sub-system with SiS 630 SiS301 chip on board to provide the TV-Out function CMI8738 PCI 3D Audio/HSP 56Kflex/V.90 Modem Chip LAN: RealTek 8139B or SiS900 (Built in SiS630) MEMORY Two 168-pin DIMM Sockets for 3.3V SDRAM (Ready for PC100, PC133) Maximum: 1GB SYSTEM BIOS Award 2MB Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full Support for ACPI revision 1.0 specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB Ports and LAN connector One - EPP/ECP mode parallel port TV-out connectors (1 Video out RCA jack, 1 S-Video mini-Din port) One VGA connector Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector ports, Headers and Others: SPDIF In/Out header for digital audio interface (Optional) IrDA Cable header COM port headers Header for Modem DAA module Green, HDD, power indicator LED headers CPU and Case Fan headers LAN Card Wake Up/Internal Modem Ring Wake-Up headers RTC & BATTERY SiS 630 built-in 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 2 PCI slots, 1 301riset slot FORM FACTOR FlexATX (220mm*190mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
