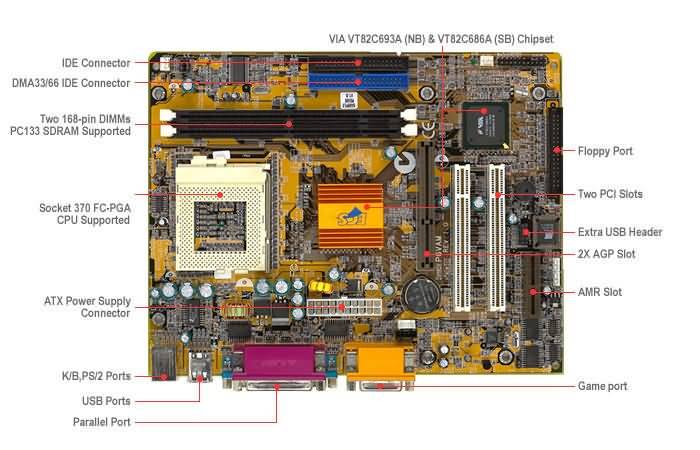

P6VAM - ECS
PROCESSORS Intel® FC-PGA Pentium® III processors up to 850MHz(100MHz FSB) and 1GBz(133MHz FSB) Intel® Celeron™ FC-PGA processors up to 766MHz(66MHz FSB) and up to 800MHz(100MHz FSB) Cyrix® III processors up to 600MHz(100MHz FSB) and up to 667MHz(133MHz) Cyrix® III-2(64K cache) processors up to 650MHz(100MHz FSB) and up to 667MHz(133MHz) CHIPSET VIA® VT82C693A & VT82C686A Super I/O - Integrated in VT82C686A System Hardware Monitor: Integrated in VT82C686A AC97 Audio Codec Compliant with AC97 2.1 specification MEMORY Two 168-pin DIMM sockets for 3.3V SDRAM (Ready for PC100, PC133) Support ECC with parity checking function Maximum: 1.0GB SYSTEM BIOS Award 2MB Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Four USB Ports (Two USB Connectors as header on board) Two - 16550 high-speed serial I/O ports Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100) ATX Power Supply Connector Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) ports, Headers and Others: IrDA ASKIR header Green, HDD, Power indicator LED headers CPU Fan and Chassis Fan headers LAN Card Wake Up / Modem Ring Wake-Up headers RTC & BATTERY VT82C686A included 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 2 PCI slots, 1 AGP slot, 1 AMR slot FORM FACTOR microATX (245mm*190mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
