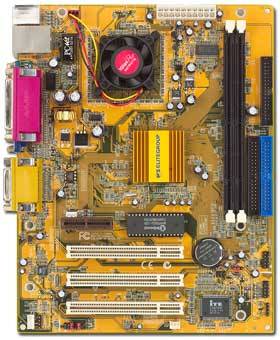

P6VEM3 V3.X - ECS Elitegroup
VIA® C3 Samuel2 1 GigaPro processor onboard, up to 133MHz FSB Integrated with the most advanced technologies: Hardware monitoring LAN / modem wake up Keyboard power on PROCESSORS Onboard VIA® C3 Samuel2 1 GigaPro processor CHIPSET SiS® 630E single chipset with following features: Integrated advanced 128-bit 2D/3D graphic engine LPC I/O - ITE IT8705F LPC to ISA Bridge - Winbond W93626F System hardware monitor: Integrated in ITE IT8705F LAN: Integrated in SiS® 630E AC97 audio codec with VIA® VT1612A SYSTEM BIOS AMI 2Mb Flash ROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification MEMORY 2 168-pin DIMM sockets for SDRAM memory module Maximum: 1GB I/O INTERFACE PS/2 keyboard and PS/2 mouse connectors Dual USB 1.1 ports and a LAN connector 1 - EPP/ECP mode parallel port 1 - 16550 high-speed serial I/O port One VGA connector Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support 4 IDE devices (PIO mode 4, DMA mode 2, Ultra DMA 66) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA header (SIR) Internal PC speaker header Extra mic./speaker header CD-ROM / DVD audio input header Extra USB ports HDD LED, reset switch, suspend LED, power switch headers CPU and chasis fan headers RTC & BATTERY Integrate CMOS SRAM in SiS® 630E With CMOS hardware clear jumper EXPANSION SLOTS 3 PCI slots, 1 AMR slot FORM FACTOR microATX (244mm x 190mm), 4 layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
