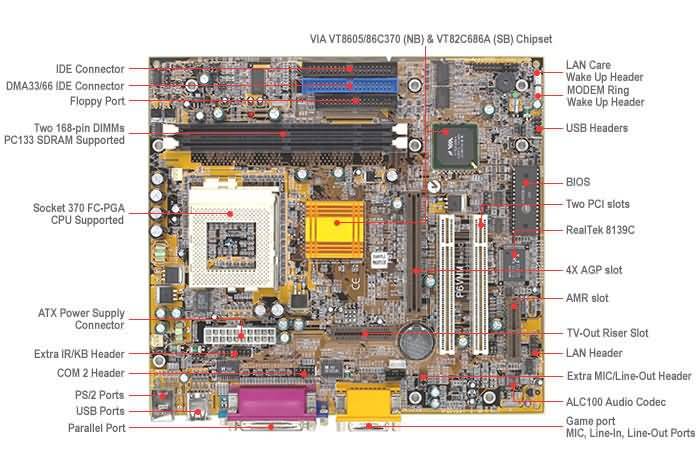

P6VMM- ECS
PROCESSORS Intel® Celeron™ FC-PGA processors up to 766MHz(66MHz FSB) and 800MHz(100MHz FSB) Intel® FC-PGA Pentium® III processors up to 850MHz(100MHz FSB) and 1GBz(133MHz FSB) Cyrix® III processors up to 600MHz(100MHz FSB) and up to 667MHz(133MHz) Cyrix® III-2(64K cache) processors up to 650MHz(100MHz FSB) and up to 667MHz(133MHz) CHIPSET VIA® VT8605/86C370 (NB) & VT82C686A (SB) Support AGP 2.0 specification (4X) Integrated Savage4 2D/3D Video Accelerator (2 to 32MB shared memory) Super I/O - Integrated in VT82C686A System Hardware Monitor: Integrated in VT82C686A LAN: RealTek 8139C AC97 Audio Codec: Avance ALC100(RealTek) Compliant with AC97 2.1 specification MEMORY Two 168-pin DIMM sockets for 3.3V SDRAM (Ready for PC100, PC133) Maximum: 1.0GB SYSTEM BIOS Award 2MB Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full Support for ACPI revision 1.0 specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Four USB Ports (Two USB Connectors as header onboard) One - EPP/ECP mode parallel port One - 16550 high-speed serial I/O ports Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) LAN Header Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector ports, Headers and Others: IrDA header Extra IR/KB/Mouse header Extra MIC/Line-out header Green, HDD, Power indicator LED headers CPU and Case Fan headers LAN Card Wake Up / Modem Ring Wake-Up headers RTC & BATTERY VT82C686A included 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 2 PCI slots, 1 AGP slot, 1 AMR slot 1 TV-Out / LCD Panel Riser Slot (optional) FORM FACTOR microATX (244mm*220mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
