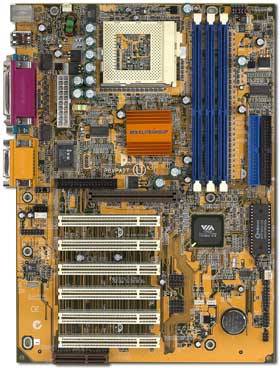

P6VPA2T - ECS Elitegroup
PROCESSORS Socket 370 supports the Intel® Celeron™ FC-PGA II series processors FC-PGA Pentium® III / FC-PGA2 Pentium® III (Tualatin) series processors CHIPSET VIA® Apollo Pro 266T: Pro266T & VT8233 chipset Pro266T V-Link Host system controller and VT8233 V-Link Client to PCI/LPC bridge Peak Bandwidth 266MB/S 8-bit V-Link Host Controller Support AGP 2.0 specification (4X) LPC I/O - ITE8712F AC97 Audio Codec: Compliant with AC97 2.1 specification SYSTEM BIOS Award 2Mb Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0 specification MEMORY Three 184-pin DDR DIMM sockets for 2.5V DDR SDRAM (DDR266/DDR200) Maximum: 3GB I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Six USB ports (Four USB Connectors as header onboard) 1 - EPP/ECP mode parallel port 2 - 16550 high-speed serial I/O ports Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA header Extra USB Header (USB2/3) Front Panel MIC/Line-Out header Chassis Open Detector header HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers CPU and Case Fan headers LAN Card Wake Up / Internal Modem Ring Wake-Up headers RTC & BATTERY VT8233 included 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 6 PCI slots, 1 4X AGP slot, 1 CNR slot FORM FACTOR ATX (304mm*220mm), dual height, 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
