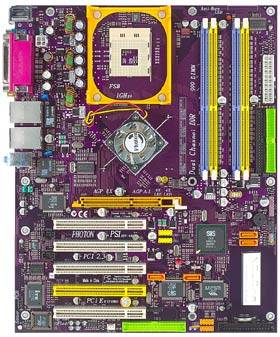

SP1 Deluxe V1.0 - ECS Elitegroup
Special Features PHOTON POWER (KV1 Deluxe) PHOTON LINK (KV1 Deluxe) PHOTON GUARDIAN (KV1 Deluxe) PHOTON GENIUS (KV1 Deluxe) CPU Socket 478 for Intel Pentium 4 processor with speed up to 3.2GHz. FSB 800/ 533/ 400MHz Support Hyper-Threading Technology Chipset SiS® 655FX & 964 North Bridge: SiS® 655FX South Bridge: SiS® 964 Memory Dual-channel DDR memory architecture 4 x184-pin DDR DIMM socket support up to 4 GB Support DDR400/333/266 2.5V DDR SDRAM Expansion Slot 1 x AGP 8X/4X slot 5 x PCI slots IEEE 1394a VIA® VT6307 IEEE1394a controller -- Supports 2 x IEEE1394a connectors Storage Support by SiS® 964 4 x Ultra DMA133/100/66 devices Supported by SiS® 180 2 x Ultra DMA133/100/66 devices 2 x Serial ATA devices RAID0, RAID1& RAID 0+1 configuration Audio C-Media CMI9739A 6-channel audio CODEC Digital SPDIF(Coaxial & Optical) out Compliant with AC'97 2.2 specification DUAL LAN Marvell 88E8001 Gigabit LAN Controller Realtek RTL8201BL 10/100Mbps Fast Ethernet PHY Back Panel I/O Ports 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 2 x RJ45 LAN connectors 1 x Parallel port (LPT1) 1 x Serial port (COM1) 2 x Digital SPDIF (Optical & Coaxial) out 1 x Audio ports (Line-in, Line-out, Mic-in) Internal I/O Connectors & Header 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector 1 x Floppy connector supports 360K~2.88M Bytes, 3 Mode FDDs or LS120 3 x IDE interfaces 4 x Serial ATA connectors 1 x IrDA for SIR header 2 x USB 2.0 header support additional 4 USB Ports 2 x 1394a headers 1 x EZ-Watcher header 1 x SMBus header 1 x Front panel audio header 1 x Front panel switch/LED header CD in/ AUX in headers CPUFAN/NB_FAN/CASFAN connectors BIOS Award BIOS with 4Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Supports ACPI revision 1.0 specification RTC & Layers SiS964 included 512 bytes CMOS SRAM With CMOS SRAM hardware clear jumper Form Factors & Layers ATX Size (305mm*244mm), 6 layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
