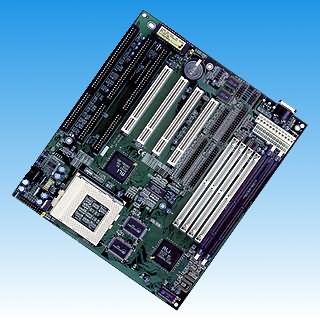

Atlas I(P5A4P-AT)- EFA .jpg)
CPU INTEL Pentium P54C, P54CS, P55C(MMX 166/200/233), Cyrix 6x86, Cyrix 6x86L, AMD 5k86(K5),K6 CPU Speed P54C : 100/120/133/150/166/200 MHz P55C/K6 : 166/200/233 MHz System Speed 50/55/60/66/75 MHz BIOS BIOS 128K BIOS; PnP Compliant (256K Upgradable) BIOS ROM Flash Memory CACHE Internal(L1) Write Back External(L2) Pipi-line Burst Write Back SRAM(256K/512K) 256K on board MEMORY DRAM Size From 2M up to 256M Bytes DRAM Module SIMM x 4 for 2 Banks of 72 pin(5V EDO/FP) DIMM x 2 of 168 pin for Sync. DRAM or 3.3V EDO On Board I/O I/O Function Local Bus Enhanced Dual-Channel IDE Bus Master PCI IDE/Mode 4 Support Ultra DMA-33 Mode Support ECP/EPP Parallel Port 2 Serial Port FDD Support GREEN SYSTEM SMM Control, Stop CPU Clock, ACPI VGA Control of DPMS SLOT Expansion Slot 16 Bit ISA x 3 32 Bit PCI x 4 (4 Master Support) PCI Bus Fully Synchronous 25/27.5/30/33/37.5 MHz PCI Bus, PCI SPEC 2.1 MEMORY DIMM x 2, SIMM x 4 Power Connector AT/ATX Power Connector Support Fully ATX Function Support USB Two USB Ports (Optional cable must be purchased) Mouse PS/2 Mouse Keyboard Keyboard CNN AT Keyboard, PS/2 Keyboard(Optional) Others Main Chipset ALI Aladin4+ Chipset, M1531, M1543 I/O Chipset Build-In on Aladin4+ PCB Size 220mm x 250mm x 1.6mm, 4 layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EFA Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
