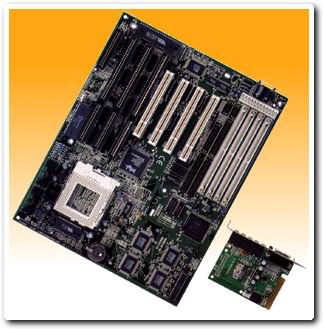

P55T2-PIO- EFA
CPU INTEL Pentium / P54C, P54CS, P55C CPU Speed P54C: 75 / 90 / 100 MHz P54CS: 100 /120 / 133 / 150 / 166 MHz P55C: 200 MHz Upgradable CPU Power Standard, VR, VRE Voltage Support System Speed 50/60/66MHz BIOS BIOS 128K BIOS; PnP Compliant BIOS ROM Flash Memory (EEPROM) or EPROM CACHE Internal(L1) Write Back External (L2) Pipe-Line Burst Write Back SRAM (256K/512K) MEMORY DRAM Size From 4M up to 512M Bytes DRAM Module 2 Banks of 72 pin SIMMs 2 SIMMs of One Bank Data Path 64 Bit Wide On Board I/O I/0 Function Local Bus Enhanced Dual-Channel IDE Bus Master PCI IDE/Mode 4 Support ECP/EPP Parallel Port 2 Serial Port SIR Function (Optional) FDD Support 2 PnP DMA Channel Steering Via BIOS On Board Sound (Option) Sound Chipset ESS1788 Multimedia Bus Spund Chip Private Bus Sound Adapter Sound Adapter Card Game/MIDI Game/MIDI Port Support 3D Sound 3D Sound Support (Option) Wave Table Wave table Support (Option) GREEN SYSTEM SMM Control, Stop CPU Clock VGA Control of DPMS SLOT Expansion Slot 16 Bit ISA x 3 32 Bit PCI x 4 (4 Master Support) PCI Bus Fully Synchronous 30/33MHz PCI Bus Interface USB Two USB Ports Mouse PS/2 Mouse (Option) Keyboard Keyboard CNN AT Keyboard, PS/2 Keyboard (Option) Others Main Chipset INTEL TRITON-II CHIPSET TXC*1, PlIX3*1 IO Chipset SMC669/UMC8669/ALI M5113 PCI Bus Master IDE Embedded Via PIIX3 PCB Size 220mm x 280mm x 1.6mm, 4 layers Remark: Shaded area are with P55T2SPIO. P55T2PIO-B are pipe-line burst SRAM on board. (B stands for Burst) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EFA Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
