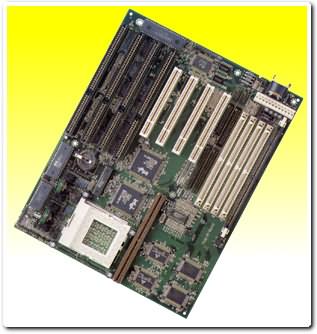

P5TVX-AT - EFA
CPU INTEL Pentium P54C, P54CS, P55C, Cyrix 6x86(M1), AMD 5k86(K5) CPU Speed P54C:75/90/100 MHz; P54CS:100/120/133/150/166/200 MHz; P55C:200MHz Upgradable CPU Power Standard, VR, VRE Voltage Support System Speed 50/55/60/66MHz BIOS BIOS 128K BIOS; PnP Compliant BIOS ROM Flash Memory (EEPROM) or EPROM CACHE Internal(L1) Write Back> External(L2) Pipe-line Burst Write back SRAM (256K/512K) 256 K ON Board, COAST (Spec. 3.0) x 1 for Upgrade. MEMORY DRAM Size From 4M up to 128M Bytes DRAM Module SIMM x 4 for 2 Banks of 72 pin DIMM x 2 of 168 pin for Sync. DRAM (3.3V Non-Buffer) Data Path 64 Bit Wide On Board I/O I/0 Function Local Bus Enhanced Dual-Channel IDE Bus Master PCI IDE/Mode 4 Support ECP/EPP Parallel Port 2 Serial Port SIR Function (Optional) FDD Support 2 PnP DMA Channel Steering Via BIOS GREEN SYSTEM SMM Control, Stop CPU Clock VGA Control of DPMS SLOT Expansion Slot 16 Bit ISA x 4, 32Bit PCI x 4 (4 Master Support) PCI Bus Fully Synchronous 25/27.5/30/33MHz PCI Bus Interface CACHE COAST x 1 MEMORY DIMM x 1 + SIMM x 4 USB Two USB Ports Mouse PS/2 Mouse Keyboard Keyboard CNN AT Keyboard, PS/2 Keyboard(Option) Others Main Chipset INTEL TRITON-VX (430VX) CHIPSET TVX x 1, PIIX3 x 1, TDX x 2 IO Chipset SMC 665/ALI M5113 PCI Bus Master IDE Embedded Via PIIX3 PCB Size 220mm x 280mm x 1.6mm, 4 layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EFA Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
