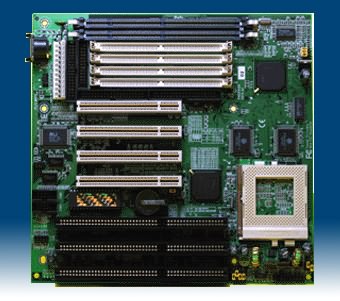

Pegasus I (E5TX-AT)- EFA .jpg)
CPU CPU Intel Pentium/P54C, P54CS, P55C (MMX) Cyrix 6x86, 6x86L, 6x86MX, MII AMD K5, K6, K6-2 CPU Speed P54C: 75/90/100/120/133/150/166/200MHz P55C:166/200/233/266/300/333/366MHz System Speed 55/60/66/MHZ BIOS BIOS 128K BIOS; PnP Compliant (256K Upgradable) BIOS ROM Flash Memory CACHE Internal (L1) Write Back External (L2) Pipe-line Burst Write Back SRAM(256K/512K) MEMORY DRAM Size From 4M up to 256M Bytes DRAM Module SIMMs x 4 for 2 Banks of 72 Pin (5V EDO/FP) DIMM x 2 of 168 Pin for Sync. DRAM (3.3V Non-Buffer) or 3.3V ED Data Path 64 Bit Wide On Board I/O I/O Function Local Bus Enhanced Dual-Channel IDE Bus Master PCI IDE Mode 4 Ultra DMA-33 Support ECP/EPP Parallel Port 2 Serial Port IR Function (Optional) FDD Support GREEN SYSTEM SMM Control, Stop CPU Clock; ACPI VGA Control of DPMS SLOT Expansion Slot 16 Bit ISA x 3 32 Bit PCI x 4 (4 Master Support) PCI Bus Fully Synchronous 25/27.5/30/33Mhz PCI Bus Interface MEMORY DIMM x 2, SIMM x 4 Power Connectors AT Power Connector Support USB Two USB Ports (Optional cable must be purchased) Mouse PS/2 Mouse Keyboard KeyboardCNN AT Keyboard, PS/2 Keyboard (Optional) Others Main Chipset INTEL TRITON-TX(430TX) CHIPSET MTXC(82439TX)*1, PIIX4(82371AB)*1 IO Chipset ALI M5135 PCI Bus Master IDE Embedded Via PIIX4 PCB Size 220mm x 230mm x 1.6mm, 4 layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EFA Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
