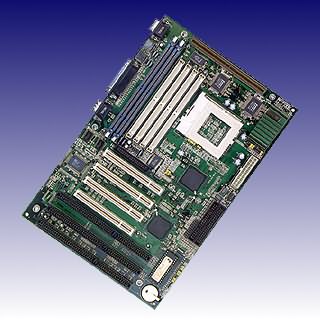

Pegasus II(P5TX-ATX)- EFA .jpg)
CPU CPU INTEL Pentium P54C, P54CS, P55C, MMX 166/200, Cyrix 6x86(M1), Cyrix 6x86L, AMD K5, AMD K6 CPU Speed P54C:100/120/133/150/166/200 MHz P55C:166/200/233/266MHz System Speed 50/55/60/66MHz BIOS BIOS 128K BIOS; PnP Compliant (266K Upgradable) BIOS ROM Flash Memory CACHE Internal(L1) Write Back External(L2) Pipe-line Burst Write back SRAM (256K/512K) 256 K ON Board, COAST (Spec. 3.0) x 1 for Upgrade. MEMORY DRAM Size From 8M up to 256M Bytes DRAM Module SIMM x 4 for 2 Banks of 72 pin (5V EDO/FP) DIMM x 2 of 168 pin for Sync. DRAM (3.3V EDO) Data Path 64 Bit Wide On Board I/O I/0 Function Local Bus Enhanced Dual-Channel IDE Bus Master PCI IDE/Mode 4 Support Ultra 33 DMA Mode Support ECP/EPP Parallel Port 2 Serial Port SIR Function (Optional) FDD Support GREEN SYSTEM SMM Control, Stop CPU Clock; ACPI VGA Control of DPMS SLOT Expansion Slot 16 Bit ISA x 3 32 Bit PCI x 4 (4 Master Support) PCI Bus Fully Synchronous 25/27.5/30/33MHz PCI Bus Interface MEMORY DIMM x 2 + SIMM x 4 USB Two USB Ports (Optional cable must be purchaced) Mouse PS/2 Mouse Keyboard KeyboardCNN PS/2 Keyboard Others Main Chipset INTEL TRITON-TX (430TX) CHIPSET MTXC(82439TX)*1, PIIX4(82371AB)*1 IO Chipset ALI M513X/ALI M514X PCI Bus Master IDE Embedded Via PIIX4 PCB Size 305mm x 200mm x 1.6mm, 4 laycrs CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EFA Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
